Richter Merlin S6 - [2-Way 6.5"] | Richter | Toma Audio Gold Coast & Tweed Heads

Richter Merlin S6 - [2-Way 6.5"], Merlin Series 6 Hero 1 at Toma Audio — Tap a view to see the details

The long listen

Merlin S6plus

From the product description

The details that matter.

A short guide to the design and features described by Richter.

Merlin S6plus

We believe our Merlin Series

We believe our Merlin Series 6+ Bookshelf Speakers are our best to date. Using the latest acoustic performance testing processes, they pack a lot of punch for their size, and out-perform many floor-standing models. Building upon our 2017 award winning bookshelf Merlin MKV speakers, the new Merlin S6+ bookshelf speakers will turn an intimate room into a large open sound stage with amazing, room-filling sound. The two-way Merlins use our new low distortion soft dome tweeter partnered with our newly developed light weight 6 1/2 inch mid/bass driver. The development of these new proprietary drivers allows us to take a New crossover design approach. This results in the MERLIN Series 6+ being an Exciting Award Winning Entertainment Experience to make you want to start digging through that record and CD collection or start swiping for your favourites from a streaming service.

The Merlin S6 Bookshelf Speaker

The Merlin S6 Bookshelf Speaker is part of the sixth generation (Series 6) of the Legendary Richter speakers and in this series we wanted to focus on delivering Loudspeakers that meet today’s customer’s expectations and equipment choices.

This meant raising the bar

This meant raising the bar from a visual and performance perspective. New aesthetically pleasing cabinet designs including magnetic mounting grills were drafted as well as the development of all new Propriety drivers which allowed us to take a new cross over design approach.

Staying true to the comment

Staying true to the comment of the brands founder ‘I’m not in the audiophile industry, I’m in the entertainment industry,’ the Series 6 range is designed to deliver an Exciting Engaging Entertainment Experience. We’d like to get you digging through that record and CD collection or start swiping for your favourites from a streaming service.

New drivers

Our New 6 1/2” speaker

Our New 6 1/2” speaker driver cones are made from a pulp comprising of paper, hemp, kapok and wool with an engineered fibre resulting in a very lightweight but stiff driver cone, then sprayed with surface sealant. These new Midrange and Bass drivers developed for the Series 6 Range effectively minimise breakup and roll off resonance. Then partnered with an all New low distortion soft dome tweeter which has a resonance well below 900Hz and the desired phase characteristics of a gently inclined sound pressure level frequency response to over 30Khz.

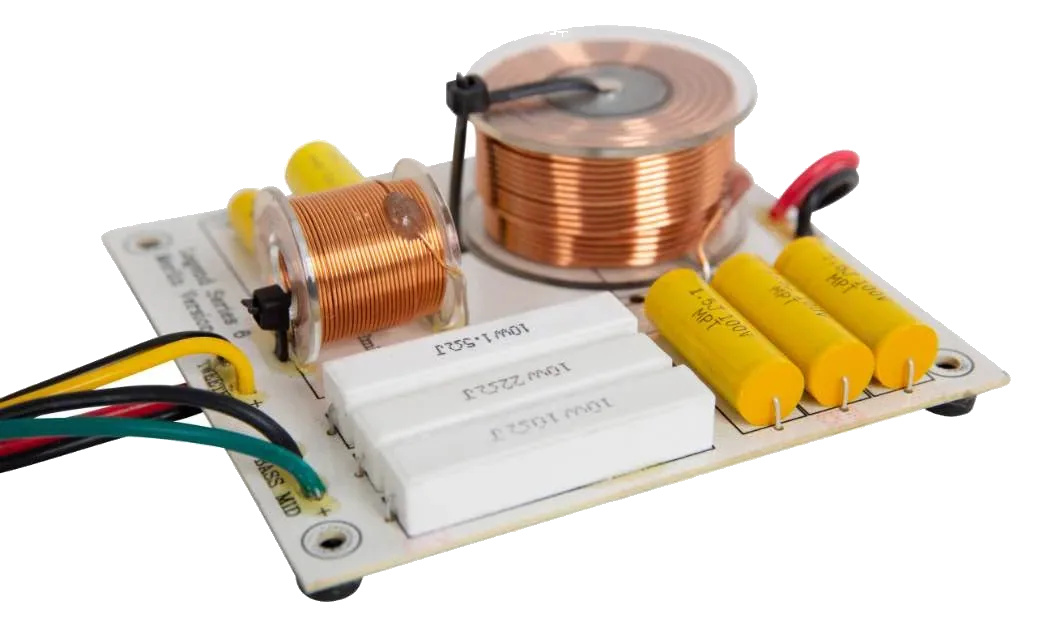

New cross-overs

These New improved Drivers allowed

These New improved Drivers allowed us to take a New crossover design approach minimising the number of components required in the signal path. High-quality acoustic polypropylene caps with air cored and ferrite cored inductors for the mid/bass range and top end circuits were chosen.

010

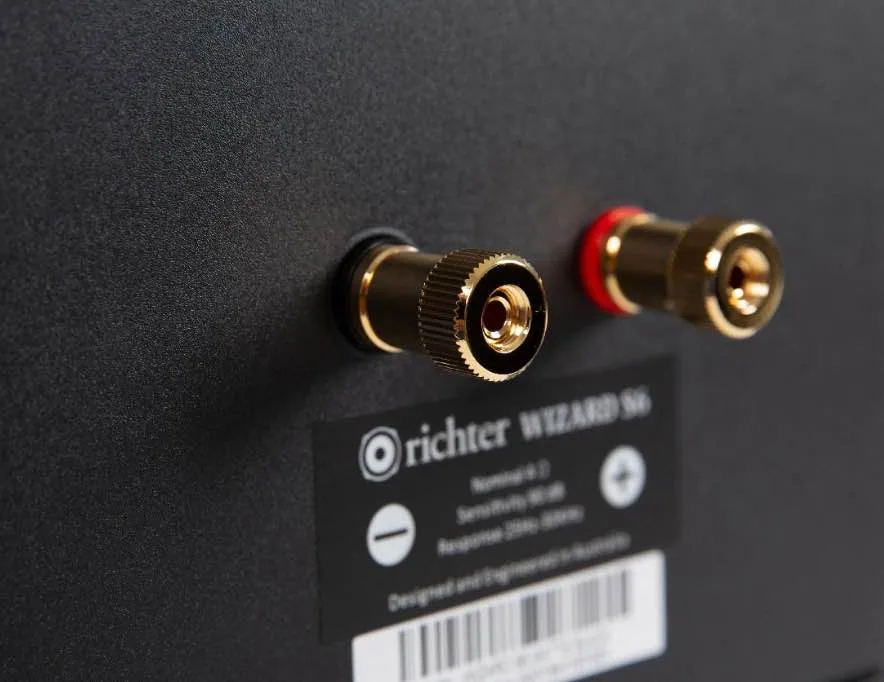

Connectors

011

Richter Series 6 speakers all

Richter Series 6 speakers all use our New heavy-duty, high-Quality gold-plated speaker terminal connectors which can accept a variety of connector types including: bare wire, pin connectors, spade connectors and banana plugs.

012

Specifications

013

Design:

014

2 Way Vented Bookshelf

015

Enclosure:

016

Bass Reflex

017

Tweeter:

018

25mm soft dome neo

019

Mid/bass:

020

165mm (6 1/2") Composite Paper

165mm (6 1/2") Composite Paper cone

021

Response:

022

(-6dB) 44Hz-30KHz

023

Sensitivity:

024

88 dB (2.83Vrms, 1m on

88 dB (2.83Vrms, 1m on Axis)

025

Nominal Impedance:

026

6 Ohms (minimum 4.6 Ohms)

027

Rec Amplifier Power:

028

H/T 50-100 2ch 40-150 Wrms

029

Dimensions:

030

H320 x W219 X D289

H320 x W219 X D289 (Including 9mm grill)

031

Net Weight:

032

7.3Kg Per Speaker

At a glance

Merlin S6 - [2-Way 6.5"] details

Richter Merlin S6 - [2-Way 6.5"] specifications
Design:	2 Way Vented Bookshelf
Enclosure:	Bass Reflex
Tweeter:	25mm soft dome neo
Mid/bass:	165mm (6 1/2") Composite Paper cone
Response:	(-6dB) 44Hz-30KHz
Sensitivity:	88 dB (2.83Vrms, 1m on Axis)
Nominal Impedance:	6 Ohms (minimum 4.6 Ohms)
Rec Amplifier Power:	H/T 50-100 2ch 40-150 Wrms
Dimensions:	H320 x W219 X D289 (Including 9mm grill)
Net Weight:	7.3Kg Per Speaker
